BERJAYA BS 2DF5/Z Undercounter Freezer, 2 doors (1500mm)

With the increasing demand for frozen food, the freezer table has long become an indispensable item in every industrial kitchen. Berjaya is one of the leading brands in the production of this product, typical among them is the Berjaya Bs 2DF5/Z 1500mm 2-door freezer. With the import of CBU from Malaysia, let’s learn about this product with Cosmic!

Berjaya BS 2DF5/Z freezer products

1. Working principle of industrial freezer table
The basic structure of the industrial freezer is similar to the refrigeration products of other kitchen equipment, with a system including a compressor, condenser and evaporator, and gas conduction.

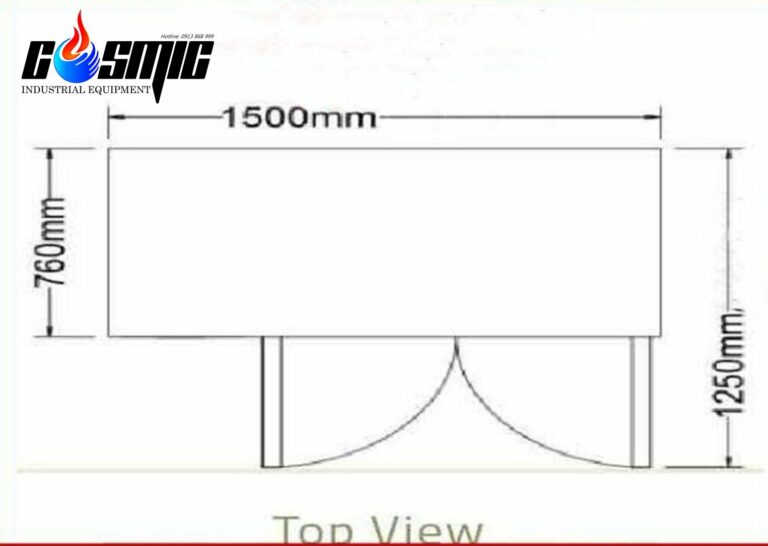

Preliminary dimensions of the Berjaya đông east table

The compressor (Block) of the freezer is mainly a one or two-piston compressor, with the task of sucking up all the refrigerant vapor generated in the evaporator. At the same time, the machine works to maintain the pressure required for relative evaporation at a good temperature and compresses the air from the evaporator pressure to the condenser pressure, pushing it into the condenser.

Basic working principle of industrial refrigeration equipment

Meanwhile, the condenser is the heat exchanger between the condensing refrigerant and the cooling medium (water or air). The job of the condenser is to release the heat of the condenser to the environment. Therefore, it is installed: one end (inlet) is installed on the ejector end of the compressor, the other end (liquid outlet) is installed in the filter dryer before connecting with a capillary. The condenser is usually made of iron and copper, with a heat sink like a dish dryer.

The evaporator supports heat exchange between the refrigerant and the cooling medium. The job of the evaporator is to collect the heat of the cold environment to supply the refrigerant to boil at a good temperature.

The indoor unit keeps food in a fresh, nutritious state

The working mechanism of an industrial freezer is very simple. The freezer uses dry steam to absorb heat. The compressor compresses the refrigerant, causing the pressure to rise with the temperature of the refrigerant. The external condenser allows the refrigerant to reduce the heat caused by pressure. The refrigerant cools, condenses into a pure liquid and flows through the throttle valves.

2. Berjaya 2-wing winter table product from Malaysia

Berjaya freezer shelf inside

With that basic operating principle, the Berjaya 2-wing freezer is designed to ensure that the process is more convenient and optimal. Model BS 2DF5/Z has a box size of 1500 x 760 x 840 mmH, capacity 366L, weight 102 kg. The cabinet has a 2-wing design, 4 shelves with separate control and cooling systems, making the cold side air unaffected, as well as more convenient in daily use.

Electronic control panel of berjaya bs 2df4/z

The refrigeration cycle is repeated similarly to other industrial kitchen appliances. A special feature is that the freezer uses R404a refrigerant, with an electrical capacity of 402 – 444 W with a voltage of 230V / 50Hz / 1P, does not cause much noise compared to other lines. The product’s storage temperature is in the range of -10°C ~ -14°C, which helps to completely freeze the food, but still retains the necessary nutritional values inside.

With the origin of the Berjaya brand from Malaysia, the Berjaya 2-wing freezer is guaranteed for quality from high-quality materials, modern design to stable and safe operation quality for high-end industrial kitchen space.

The product is suitable for high-class kitchen space of restaurants and hotels

Over three decades of sustainable development in the commercial foodservice equipment industry, Berjaya has gradually become the leading manufacturer and exporter of commercial refrigeration equipment in Malaysia. The brand’s products are not only famous locally but also internationally recognized by exporting to more than 60 countries, including Vietnam.

3. Notes when using the freezer products
In the still complicated epidemic situation, perhaps the need for food storage and preservation of enterprises has not decreased but also increased sharply. The purpose is in addition to serving business activities, also to better store food sources, ensure nutrition in the maximum time of use. Although the Berjaya freezer has a good capacity, cold keeping quality and optimal storage, it is not advisable to abuse the product excessively.

Sorting food for storage will help the freezer work better

Limit the use of the same power source with other cooking and industrial kitchen equipment.

Make the most of the 4 shelves on both sides of the cabinet by dividing food into different nutritional categories. This will help the freezer work evenly, retaining the best nutritional value for the dish.

Clean and check the cabinet regularly to avoid overactivity, or leftover food for too long not to be used.

The top of the freezer can be used as a food preparation area. However, if the kitchen space is not too small, it is recommended to limit the shelves, put heavy objects on the table too much so that the exhaust system is reduced.
